6W 12V DC Power Solenoid For Medical Instruments

Name: 6W 12V DC Power Solenoid For Medical Instruments
Brand: DASON
Price: 0.6 USD

Quality 6W 12V DC Power Solenoid For Medical Instruments wholesale

Brand Name : DASON

Model Number : U1040B-12S7.2

Certification : ISO 9001

Place of Origin : China

MOQ : 500

Price : 0.6~1USD

Payment Terms : T/T

Supply Ability : 300000

Delivery Time : 30day

Packaging Details : Carton packing

Structure : Needle

Withstand voltage : 2000V/1min

Resistance : 144Ω±10%

Relative humidity : 20%-85%

Temperature range : -5℃-45℃

Work Model : 800gf

purpose : tow

Initial suction : 500g

Contact Now

DC solenoid medical instruments solenoid electromagnet

Product Description

No	Project		technical parameter
1	Mode of action of exercise		Push pull type
2	Power on rate		25%
3	Rated parameters	Voltage	12 VDC
4		electric current	0.5A
5		resistance	36
6		power	6W
7	Applicable range of voltage change		18V~26V
8	Initial force		100G
9	Design itinerary		2mm
10	Maximum single power on time		0.1S

Application of u1040b electromagnet:

1. Diaphragm compression power electromagnet

2. Power electromagnet for beating back of family massage instrument

3. Health physiotherapy instrument, percussion stimulation electromagnet

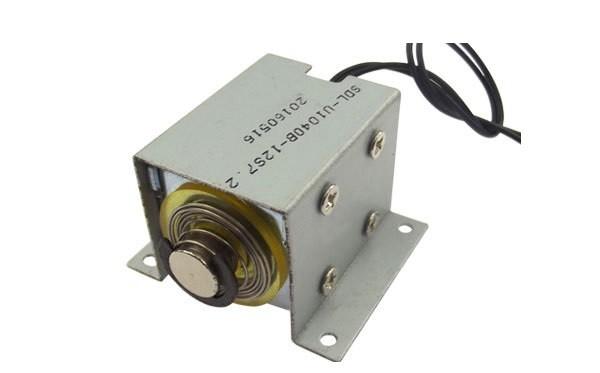

6W 12V DC Power Solenoid For Medical Instruments

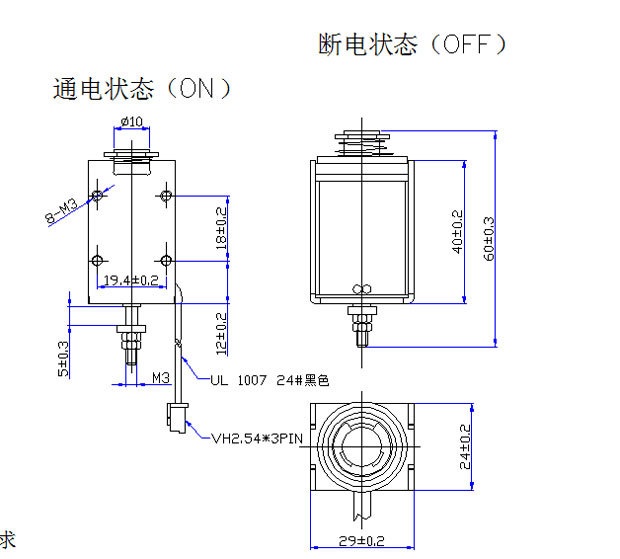

Dimensional drawing
6W 12V DC Power Solenoid For Medical Instruments

Product features:

1. The coil is enlarged, the heating is low and the pulling force is strong;

2. The ear type reinforcement of the frame will not collapse due to vibration;

3. Anti impact pad installation, quiet, long life;

4. The outlet slot design can prevent the wire from damage;

5. Shangrao high-quality high-temperature resistant enameled wire is adopted, with slow aging and stable performance;

6. Using large wire to reduce unnecessary electric loss.

Supply Ability

Supply Ability:100000 Piece/Pieces per Month

Packaging & Delivery

PortGuangdong, shenzhen

Lead Time :

Quantity(Pieces)	1 - 500	501 - 1000	1001 - 5000	>5000
Est. Time(days)	10	15	20	To be negotiated
